2 ZONE PA POWER AMPLIFIERS

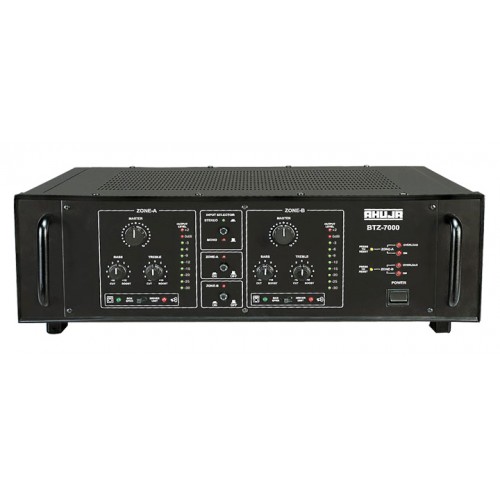

BTZ-7000
700
WATTS
2 ZONE PA POWER
AMPLIFIER
- Stereo Music Operation for DJ programmes.
- Facilitates connection and operation of two separate
groups of speakers simultaneously on ‘Mono’ mode. Ideal for places of
worship.
- Box Speaker/Driver Unit selector switch for each zone.
Bass boost defeated at Driver Unit position for safer operation of driver
units.
- Resettable circuit breaker for protection against
overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be
set independently to desired levels and the zones can be switched On/Off
without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power
fails.
- Bar
Graph Signal Display.
|
Power Output |
500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS
at 5% THD, 280W + 280W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
|
Outputs |
Line L/R 1V/1kΩ |
|
Speaker Outputs |
4Ω, 8Ω, 70V& 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery) |
|
Power Consumption |
DC: 13A AC: 1100VA |
|
Dimensions |
W510 × H185 × D470 mm |
|
Weight |
39.0kg |
