• PALLADIUM 1842

Palladium 1842

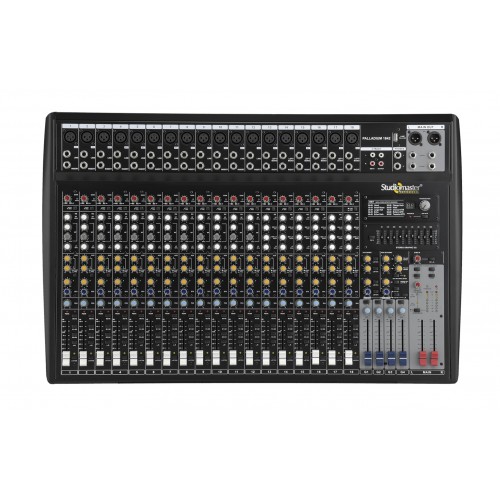

The Palladium 1842 - 24 input Mixer designed for high end Professional sound applications. Ideal for live, front-of-house and touring audio applications.

Features

·       Premium 24 Input Mixer (18 Mic + 6 Stereo) with state of the art pre amps.

·       3 band EQ with mid-sweep on Mono Inputs, 4 band EQ on Stereo.

·       Channel inserts & direct outs on each Mono Channel.

·       Low cut switch on each Channel.

·       Line/USB selections on Stereo channel.

·       Sub group & main L-R signal assignment switches on each channel.

·       4 Aux sends per channel: 2 Pre / Post & 2 Post.

·       High Quality 24 bit Digital EFX Processor.

·       USB Interface with playback and record.

·       Globally switched +48V phantom power.

·       4 Group output with fader and individual inserts.

·       Separate mono output with level control.

·       Stereo playback input/rec out RCA jack.

·       Separate control room output.

·       Standard USB type lamp socket.

·       Balanced XLR & 1/4” jack master outputs.

Specifications

Model

Palladium 1842

Max Gain (Mic/Line/Stereo Mic/Stereo Line)

80dB, 60dB, 70dB, 50dB

Input Levels Sensitivity



Mic (Gain Min/Gain Max)

-10dB/-60dBu

Line (Gain Min/Gain Max)

+10dB/-40dB

Stereo Line (Gain Min/Gain Max)

+10dBu/-30dBu

Stereo Mic (Gain Min/Gain Max)

-10dB/-50dB

Input impedence



Mic Input

> 5KΩ

Line input

> 20KΩ

Aux Return Input

> 20KΩ

Tape Record Inputs

> 20KΩ

Frequency Response

20Hz to 20KHz (+0/-2dB)

Total Harmonic Distortion

<0.006%

Equalisation



Mono MIC (Treble/Mid with Sweep/Bass)

±15dB @12KHz / 100Hz to 8KHz / 80Hz

Stereo Line (Treble/Mid-Hi/Mid-Low/Bass)

±15dB @12KHz / 3KHz / 500Hz /80Hz

Phantom supply

+48V

Power Supply

150V-240V~50Hz, 60W max

Dimensions (W x D x H in mm)

695 x 455 x 115mm

Net Weight (Kgs.)

10
